Integration Bar

This text is AI-generated — we need your feedback

This documentation was written with the help of AI and has not been fully reviewed. If something is wrong, unclear or missing, please tell us: open the feedback form, say which section it concerns and what you expected to read. The same link is at the bottom of every page.

The Integration Bar is the header of a system that integrates several vessels, or several systems. The operator chooses the fleet or one vessel in it, and the bar shows the status of that choice, next to the buttons and menus that belong to the whole system. It is found in the App - OpenBridge section of the Perspective Component Palette as Integration Bar (Experimental).

Note: This component is experimental: its properties may change in a later version.

The Integration Bar is designed to be placed once, in a top dock that is shared by all pages. It is the counterpart of the Top Bar, which is the header of a single application.

From left to right:

1. Home button — see Buttons.
2. Vessel selector — chooses the fleet or a vessel. See Vessel Selector.
3. Status fields — the status of the chosen fleet or vessel. See Status Fields.
4. Command indicator — shows whether this workstation is in command. See Command Indicator.
5. Buttons — alert, notification, screen, system, dimming and user. See Buttons, Brilliance Menu and User Menu.
6. Clock — see Clock.

The bar belongs with the Fleet Button and the Integration Button, which stand for the fleet and for one vessel on the pages below the bar, and with the App Bar, which switches between applications. See App Components — Overview for how docked views are used.

An Integration Bar dropped from the palette shows the home button, an empty vessel selector and the dimming button. It is 160 px wide; make it as wide as the view:

Width

The bar is 48 px high and as wide as the component. It does not hide or shorten its parts when they do not fit: the status texts wrap onto two lines and the parts at the right end are pushed out of the bar. The bar below has every part turned on and is 712 px wide:

Turn on only the parts that fit the narrowest screen the project is used on, and keep the status texts short.

Note: In the Designer, the bar is only interactive in Preview Mode. Choosing a vessel or a palette writes to the component’s properties, so a click in Preview Mode is saved with the view. Reset those properties before saving if needed.

---

Vessel Selector

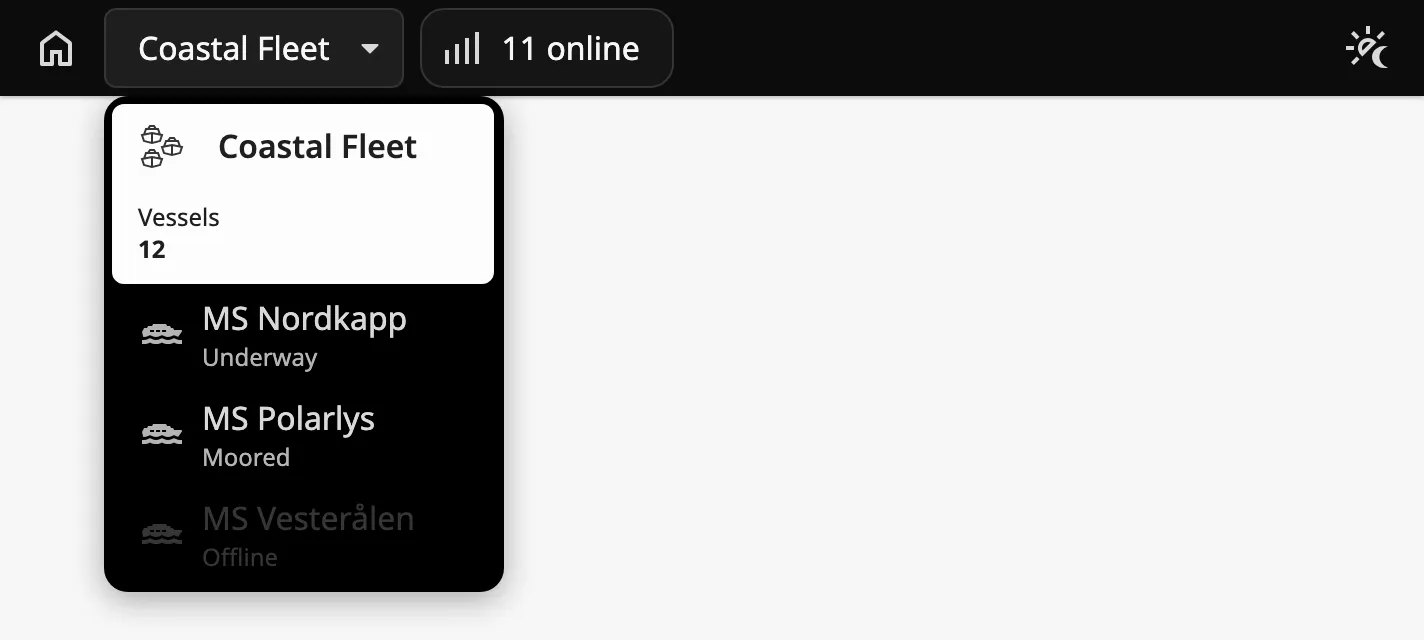

The vessel selector is a dropdown with the fleet at the top and one row per vessel. A click on the selector opens the list:

selectedVessel holds the choice. It is empty when the fleet is chosen, and the value of a vessel when that vessel is chosen. The bar writes it when the operator chooses; bind it bidirectionally to a session property, and bind the content of the pages to the same property.

selectedVessel
Empty
nordkapp

Choosing a vessel fires no event: react to the change of selectedVessel. Choosing the fleet also fires onFleetButtonClick.

Note: The list is a browser dropdown, and the Designer does not open browser dropdowns, not even in Preview Mode. Set selectedVessel in the Property Editor to see the bar with a vessel chosen, and test the selector in a session.

Fleet

fleet describes the first row of the list:

Name	Description	Property Type
name	Name of the fleet. Shown in the selector while the fleet is chosen.	value
label	A label under the name in the list, for example Vessels.	value
status	A value under the label, in bold, for example 12.	value
icon	Icon of the fleet, chosen with the icon picker.	object
statuses	The status fields shown while the fleet is chosen. See Status Fields.	array

Set showFleet to false for a system without a fleet level. The list then has only the vessels:

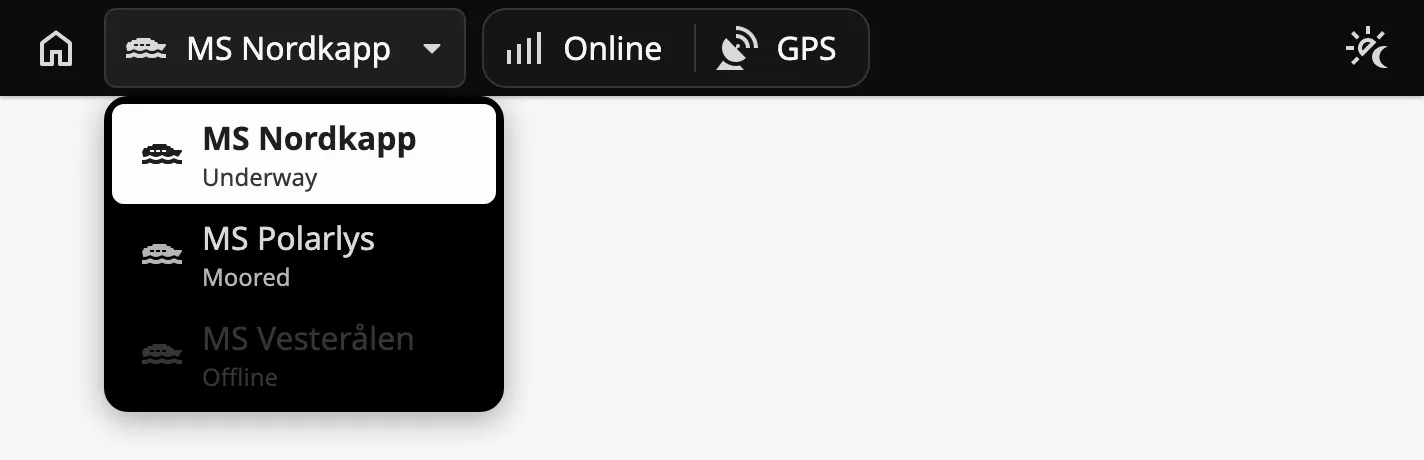

Without the fleet, set selectedVessel to one of the vessels. While it is empty the bar still shows the name and the status fields of fleet.

Vessels

vessels is the list of vessels. Each vessel is an object:

Name	Description	Property Type
value	The value written to selectedVessel when the vessel is chosen. Must be unique.	value
label	Name of the vessel.	value
status	Text under the name in the list.	value
icon	Icon of the vessel, chosen with the icon picker.	object
disabled	Show the vessel dimmed; it cannot be chosen. Default false.	value
statuses	The status fields shown while the vessel is chosen. See Status Fields.	array

Use a text for value.

Properties

Name	Description	Property Type
selectedVessel	The value of the chosen vessel, or empty for the fleet. Written when the operator chooses. Empty by default.	value
showFleet	Show the fleet as the first row of the list. Default true.	value
fleet	The fleet. See above.	object
vessels	The vessels. Empty by default.	array

---

Status Fields

Next to the selector the bar shows the status fields of what is chosen: the statuses of fleet while the fleet is chosen, and the statuses of the vessel while a vessel is chosen. Each status is an object:

Name	Description	Property Type
label	Text of the field.	value
icon	Icon before the text, chosen with the icon picker. Clear icon.path for text only.	object

The fleet with one status, a vessel with two, a status without an icon, and a vessel without status fields:

Fleet
Vessel
No icon
No status

The bar does not read the status from anywhere itself. Bind each label, and the icon.path where the icon shows a state, to tags of the vessel.

---

Command Indicator

Set showInCommand to true to add a command indicator after the status fields. It shows whether this workstation is in command, with the text in inCommandText or noCommandText.

inCommand
true
false

A click on the indicator fires onCommandClick and does nothing else. The bar does not change inCommand: bind it to the state of your command transfer.

Properties

Name	Description	Property Type
showInCommand	Show the command indicator. Default false.	value
inCommand	Whether the workstation is in command. Default false. Only shown when showInCommand is true.	value
inCommandText	Text when in command. Default In Command. Only shown when showInCommand is true.	value
noCommandText	Text when not in command. Default No Command. Only shown when showInCommand is true.	value

---

Buttons

The bar has eight buttons, each turned on with a show… property:

From left to right: home and link before the vessel selector; alert, notification, screen, system, dimming and user at the right.

The home, link, alert, notification, screen and system buttons only fire an event. What they do is up to your script: navigate home, open a dock, open a popup. The dimming and user buttons open a menu of the bar; see Brilliance Menu and User Menu.

The link, alert, notification, screen and system buttons each have an …Activated property that shows the button as pressed. The bar does not change it on a click. Set it from your script, or bind it to what the button opened, for example whether a dock is open:

Notification Count

The notification button can show a count. The count is shown only while notificationButtonActivated is true and showNotificationCount is true:

Activated
true
false

Properties

Name	Description	Property Type
showHomeButton	Show the home button. Default true.	value
showLinkButton	Show the link button. Default false.	value
linkButtonActivated	Show the link button as pressed. Default false. Only shown when showLinkButton is true.	value
showAlertButton	Show the alert button. Default false.	value
alertButtonActivated	Show the alert button as pressed. Default false. Only shown when showAlertButton is true.	value
showNotificationButton	Show the notification button. Default false.	value
notificationButtonActivated	Show the notification button as pressed. Default false. Only shown when showNotificationButton is true.	value
showNotificationCount	Show the count on the notification button. Default false. Only shown when notificationButtonActivated is true.	value
notificationCount	The count. Default 0. Only shown when showNotificationCount is true.	value
showScreenButton	Show the screen button. Default false.	value
screenButtonActivated	Show the screen button as pressed. Default false. Only shown when showScreenButton is true.	value
showSystemButton	Show the system button. Default false.	value
systemButtonActivated	Show the system button as pressed. Default false. Only shown when showSystemButton is true.	value

---

Menu Behavior

The brilliance menu and the user menu behave the same way:

• Clicking the button opens its menu; clicking the same button again closes it.
• A menu also closes when the operator presses Escape or clicks anywhere outside it.
• Only one of the two menus is open at a time. Opening one closes the other.
• The button of the open menu is shown highlighted.

---

Brilliance Menu

The dimming button opens the brilliance menu, where the operator steps between the four OpenBridge palettes: night, dusk, day and bright. The bar writes the choice to palette and applies the palette to the whole page, so every OpenBridge component in the session follows.

Place the bar in a dock that is shared by all pages, and bind palette bidirectionally to a session property to keep the choice when the operator reloads the page.

Set showBrillianceMenu to false to hide the dimming button. The bar then does not apply palette: set the palette with another component, such as a Top Bar.

The menu of the Integration Bar has no brightness slider.

Properties

Name	Description	Property Type
showBrillianceMenu	Show the dimming button, and apply palette to the page. Default true.	value
palette	bright, day, dusk or night. Written when the operator chooses. Default day.	value

---

User Menu

Set showUserButton to true to show the user button. It opens the user menu, which shows who is signed in, a list of actions and a Sign out button.

The bar does not read the user from the session. Bind userMenu.userInitials and userMenu.userLabel, for example to {session.props.auth.user.userName}.

userMenu.signedInActions is the list of actions. Each action is an object:

Name	Description	Property Type
id	Identifies the action in the event. Must be unique.	value
label	Text of the row.	value
hasIcon	Show an icon before the text. Default false.	value
icon	The icon, chosen with the icon picker. Only shown when hasIcon is true.	object

A click on an action fires onSignedInActionClick with the id and label of the action. A click on Sign out fires onSignOutClick. The bar does nothing else: it does not sign the user out and it leaves the menu open. See Example 2.

Properties

Name	Description	Property Type
showUserButton	Show the user button. Default false.	value
userMenu	The user menu. Only shown when showUserButton is true. See below.	object

userMenu sub-properties:

Name	Description	Property Type
userInitials	Initials shown in the circle. Empty by default.	value
userLabel	Name shown under the circle. Empty by default.	value
signedInActions	The actions of the menu. Empty by default.	array

---

Clock

Set showClock to true to show a clock at the right end of the bar. clock.showSeconds adds the seconds and clock.showTimezone the time zone:

Neither
Seconds
Both

By default the clock shows the current time of the operator’s computer, shifted to the time zone in clock.utcHourOffset. To show another time — the time of the gateway, or of the chosen vessel — bind clock.time to it.

Properties

Name	Description	Property Type
showClock	Show the clock. Default false.	value
clock	The clock. Only shown when showClock is true. See below.	object

clock sub-properties:

Name	Description	Property Type
showTimezone	Show the time zone after the time, as UTC+1. Default true.	value
showSeconds	Show seconds. Default true.	value
utcHourOffset	Time zone of the clock, in hours from UTC. Default 0.	value
time	The time to show, as an ISO 8601 text such as 2026-03-14T09:26:53Z. Empty, and the current time, by default.	value

---

Properties

Properties not covered in the sections above:

Name	Description	Property Type
style	Standard Perspective style object.	object

Component Events

Event	Description	Event Object
homeButtonClick	Fired when the home button is clicked.	—
linkButtonClick	Fired when the link button is clicked.	—
onFleetButtonClick	Fired when the operator chooses the fleet in the vessel selector.	—
onCommandClick	Fired when the command indicator is clicked.	—
alertButtonClick	Fired when the alert button is clicked.	—
notificationButtonClick	Fired when the notification button is clicked.	—
screenButtonClick	Fired when the screen button is clicked.	—
systemButtonClick	Fired when the system button is clicked.	—
brillianceButtonClick	Fired when the dimming button is clicked, both when it opens and closes the menu.	—
userButtonClick	Fired when the user button is clicked, both when it opens and closes the menu.	—
onSignedInActionClick	Fired when an action in the user menu is clicked.	id, label
onSignOutClick	Fired when Sign out in the user menu is clicked.	—

There is no event for choosing a vessel. Use a property change script on selectedVessel.

Examples

Example 1 — Integration Bar in a Shared Dock

1. Create a view Framework/IntegrationBar, 48 px high, and add an Integration Bar as its only component, as wide as the view.

2. Set fleet.name to Coastal Fleet, and vessels:

   [
     {
       "value": "nordkapp",
       "label": "MS Nordkapp",
       "status": "Underway",
       "icon": {"path": "openbridge/ship-passenger"},
       "disabled": false,
       "statuses": [
         {"label": "Online", "icon": {"path": "openbridge/connection-4-bars"}}
       ]
     },
     {
       "value": "polarlys",
       "label": "MS Polarlys",
       "status": "Moored",
       "icon": {"path": "openbridge/ship-passenger"},
       "disabled": false,
       "statuses": []
     }
   ]

3. Add a session custom property vessel with an empty text as its value, and bind selectedVessel bidirectionally to {session.custom.vessel}.

4. Add a session custom property palette with the value day, and bind palette bidirectionally to it.

5. In Page Configuration → Shared Settings, add a top dock with this view, Display visible, Size 48 and Content push.

6. Add a script to homeButtonClick:

   system.perspective.navigate('/')

The pages read {session.custom.vessel} to show the fleet or the chosen vessel.

Example 2 — Sign Out from the User Menu

1. Set showUserButton to true.

2. Bind userMenu.userLabel to {session.props.auth.user.userName}, and userMenu.userInitials to the expression upper(substring({session.props.auth.user.userName}, 0, 2)).

3. Add a script to onSignOutClick:

   system.perspective.logout()

4. Set userMenu.signedInActions to [{"id": "profile", "label": "Profile", "hasIcon": false}], and add a script to onSignedInActionClick:

   if event.id == 'profile':
       system.perspective.navigate('/profile')
